:: EMT Fittings

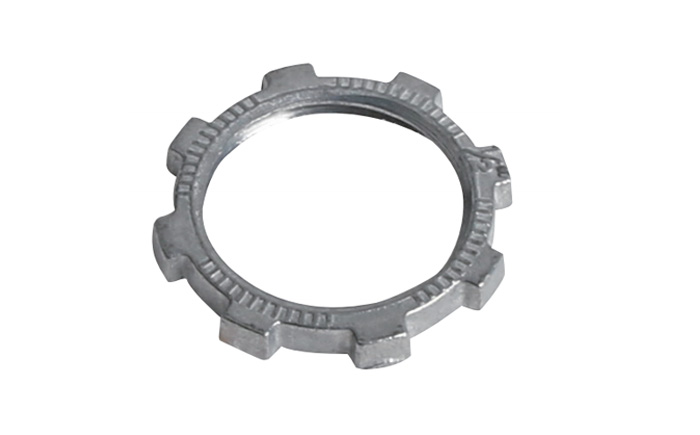

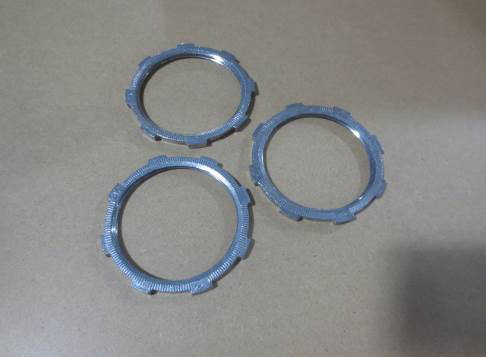

CONDUIT LOCKNUTS - ZINC DIE CAST

  • Model: 82201-82210
    Certifications: UL
    UL FILE NO.: E315256
    USE:USED TO SECURE RIGID AND IMC CONDUIT OR FITTINGS TO A STEEL BOX.
  • Inquiry
    • CONDUIT LOCKNUTS - ZINC DIE CAST
    • CONDUIT LOCKNUTS - ZINC DIE CAST
    • CONDUIT LOCKNUTS - ZINC DIE CAST
    • CONDUIT LOCKNUTS - ZINC DIE CAST
    • CONDUIT LOCKNUTS - ZINC DIE CAST

products detail


CATALOG NUMBER

TRADE SIZE

INNER CARTON

MASTER CARTON

82201

1/2''

200

2000

82202

3/4''

100

1000

82203

1''

100

1000

822041-1/4''50500
822051-1/2''
50500
822062''
50200
822072-1/2''25100
822083''25
100
822093-1/2''1040
822104''1040

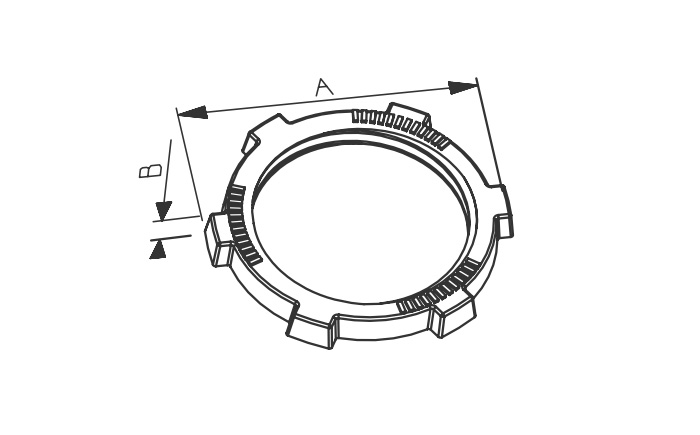

CAT#

A

B

82201

1.087

0.122

82202

1.358

0.142

82203

1.661

0.157

822042.0470.157
822052.3660.181
822062.9290.187
822073.4490.248
822084.1890.232
822094.646

0.283

822105.1460.240




Immediately Consult
Name *
Email *
Phone
Message *
Verification code *
  Click Refresh
Tag: ZINC FITTING,LOCKNUTS
