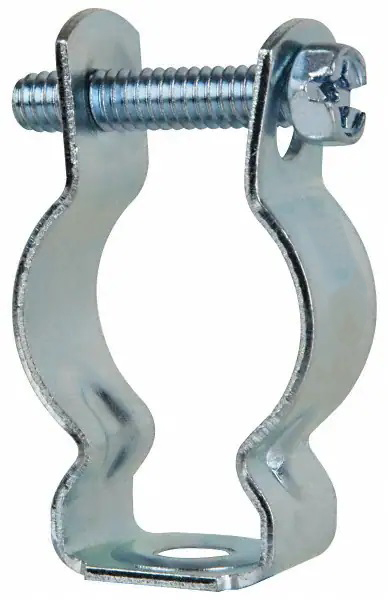

PIPE HANGERS WITH FORMED THREAD IN ONE END OF THE HANGER,NUT NOT REQUIRED PLATED STEEL
| CATALOG NUMBER | TRADE SIZE | INNER CARTON | MASTER CARTON | |
| RIGID | EMT | |||
| 62501S | 3/8"×1/2" | 1/2" | - | - |
| 62502S | 3/4" | 3/4" | - | - |
| 62503S | 1” | 1" | - | - |
| 62504S | - | 1 1/4" | - | - |
| 62505S | 1 1/4" | 1 1/2" | - | - |
| 62506S | 1 1/2" | - | - | - |
| 62507S | 2 | 2 | - | - |

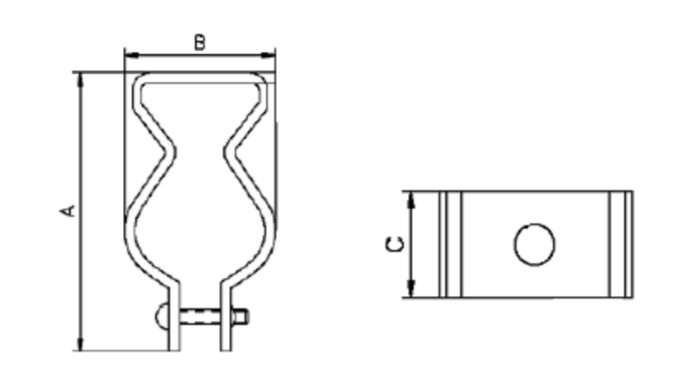

| CAT# | A | B | C |
| 62501S | 1.875 | 0.99 | 0.75 |
| 62502S | 2.175 | 1.26 | 0.875 |
| 62503S | 2.37 | 1.295 | 0.875 |
| 62504S | 3.175 | 1.965 | 0.875 |
| 62505S | 3.255 | 1.875 | 0.875 |
| 62506S | 3.78 | 2.22 | 1.065 |
| 62507S | 4.1 | 2.45 | 1.21 |
