Home » Products » FLEX&NM&SE FITTING » Cable Fittings

:: Cable Fittings

https://www.yinlei.com/uploadfiles/128.1.164.122/webid471/source/201705/149483393695.jpg

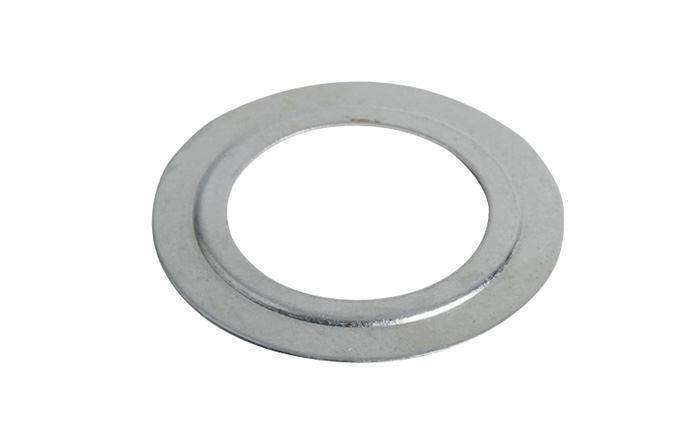

REDUCING WASHERS - STEEL

Model: 61001-61045
Certifications:UL
UL FILE NO.:E358603

products detail

CATALOG NUMBER	TRADE SIZE	INNER CARTON	MASTER CARTON
61001	3/4''-1/2''	100	1000
61002	1''-1/2''	100	1000
61003	1''-3/4''	100	1000
61004	1 1/4''-1/2''	100	1000
61005	1 1/4''-3/4''	100	1000
61006	1 1/4''-1''	100	1000
61007	1 1/2''-1/2''	50	500
61008	1 1/2''-3/4''	50	500
61009	1 1/2''-1''	50	500
61010	1 1/2''-1 1/4''	50	500
61011	2''-1/2''	100	1000
61012	2''-3/4''	100	1000
61013	2''-1''	100	1000
61014	2''-1 1/4''	100	1000
61015	2''-1 1/2''	50	500
61016	2 1/2''-1/2''	50	500
61017	2 1/2''-3/4''	50	500
61018	2 1/2''-1''	50	500
61019	2 1/2''-1 1/4''	50	500
61020	2 1/2''-1 1/2''	50	500
61021	2 1/2''-2''	50	500
61022	3''-1/2''	-	100
61023	3''-3/4''	-	100
61024	3''-1''	-	100
61025	3''-1 1/4''	-	100
61026	3''-1 1/2''	-	100
61027	3''-2''	-	100
61028	3''-2 1/2	-	100
61029	3 1/2''-1/2''	-	100
61030	3 1/2''-3/4''	-	100
61031	3 1/2''-1''	-	100
61032	3 1/2''-1 1/4''	-	100
61033	3 1/2''-1 1/2''	-	100
61034	3 1/2''-2''	-	100
61035	3 1/2''-2 1/2	-	100
61036	3 1/2''-3''	-	100
61037	4''-1/2''	-	100
61038	4''-3/4''	-	100
61039	4''-1''	-	100
61040	4''-1 1/4''	-	100
61041	4''-1 1/2''	-	100
61042	4''-2''	-	100
61043	4''-2 1/2	-	100
61044	4''-3''	-	100
61045	4''-3 1/2	-	100

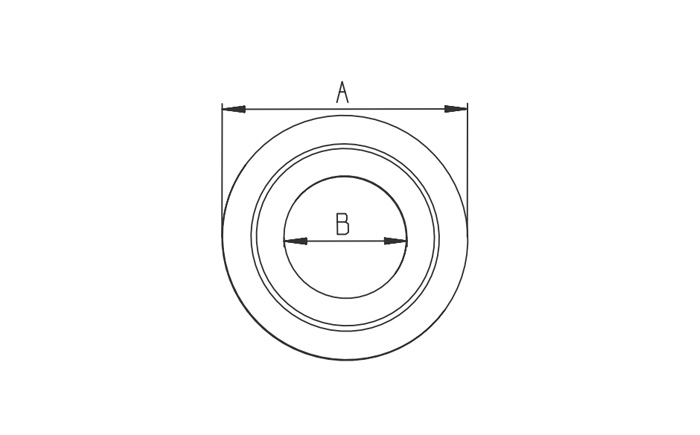

CAT#	A	B
61001	1.437	0.866
61002	1.744	0.866
61003	1.744	1.098
61004	2.193	0.866
61005	2.193	1.098
61006	2.193	1.366
61007	2.445	0.874
61008	2.445	1.106
61009	2.445	1.366
61010	2.445	1.728
61011	3.008	0.874
61012	3.008	1.106
61013	3.008	1.366
61014	3.008	1.728
61015	3.008	1.976
61016	3.504	0.874
61017	3.504	1.106
61018	3.504	1.366
61019	3.504	1.728
61020	3.504	1.976
61021	3.504	2.460
61022	4.490	0.870
61023	4.490	1.060
61024	4.490	1.360
61025	4.490	1.750
61026	4.490	1.995
61027	4.490	2.400
61028	4.490	2.940
61029	5.000	0.870
61030	5.000	1.060
61031	5.000	1.380
61032	5.000	1.710
61033	5.000	1.980
61034	5.000	2.345
61035	5.000	2.920
61036	5.000	3.560
61037	5.500	0.870
61038	5.500	1.060
61039	5.500	1.380
61040	5.500	1.715
61041	5.500	1.970
61042	5.500	2.435
61043	5.500	2.920
61044	5.500	3.560
61045	5.500	4.050
