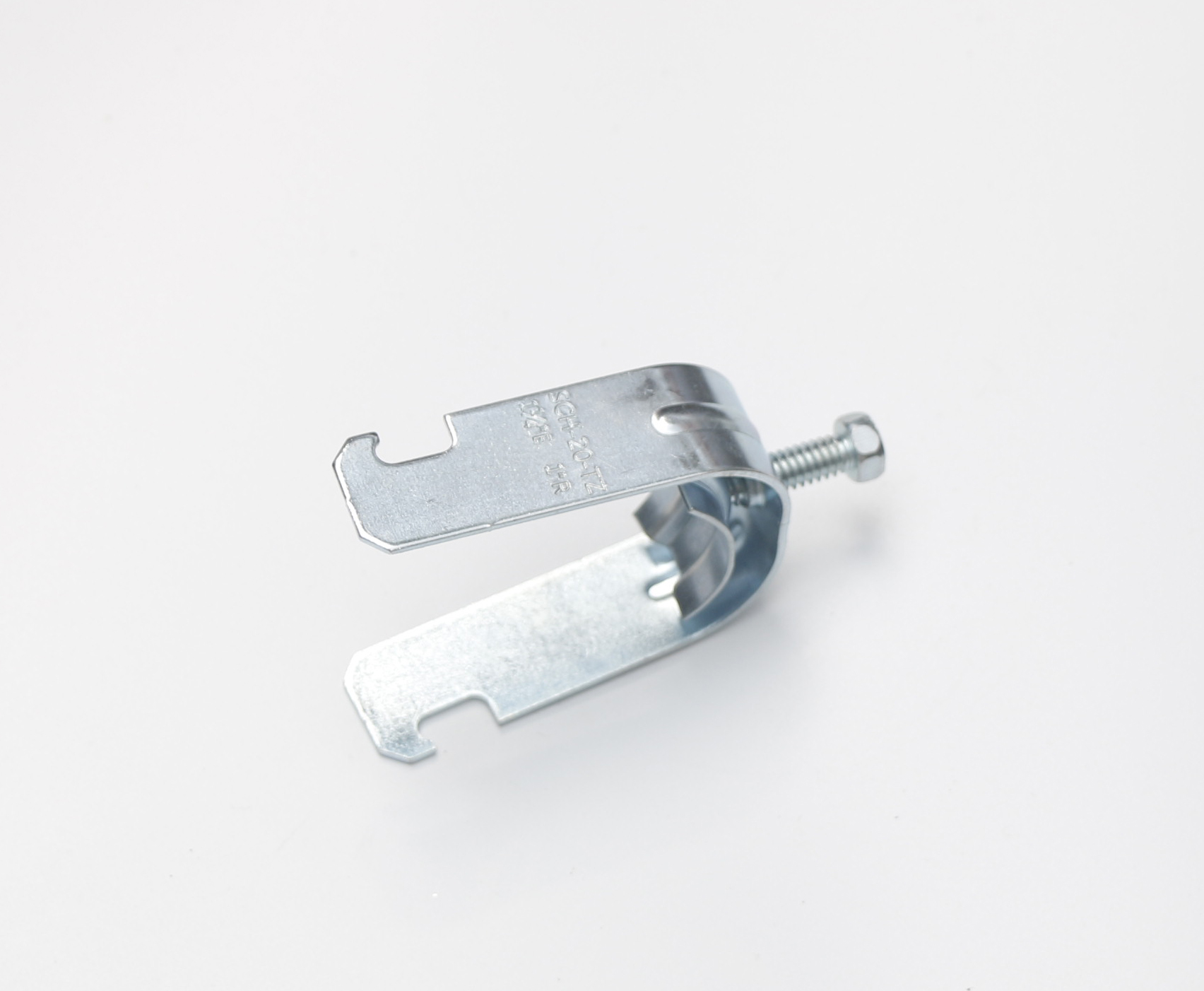

SINGLE PIECE STRUT CLAMP FOR CABLE/CONDUIT WITH BOOT-STEEL
| CATALOG NUMBER | TRADE SIZE |
| 64560B | 0.1"-0.63"OD,3/8"EMT |
| 64561B | 0.34"-0.71"OD,1/2"EMT |
| 64562B | 0.57"-0.92"OD,3/4"EMT,1/2"Rigid/Pipe |
| 64563B | 0.72‘-1.16”OD,1"EMT,3/4"Rigid/Pipe |
| 64564B | 1"-1.51"OD,1 1/4"EMT,1"Rigid/Pipe |
| 64565B | 1.25"-1.74"OD,1 1/2"EMT,1 1/4"Rigid/Pipe |
| 64566B | 1.74"-2.2"OD,2"EMT,1 1/2"Rigid/Pipe |
| 64567B | 2"-2.38"OD,2"Rigid/Pipe |
| 64568B | 2.38"-2.88"OD,2 1/2"EMT,2 1/2"Rigid/Pipe |
| 64569B | 2.72"-3.5"OD,3"EMT,3"Rigid/Pipe |
| 64570B | 3.25"-4"OD,3 1/2"EMT,3 1/2"Rigid/Pipe |
| 64571B | 3.85"-4.5"OD,4"EMT,4"Rigid/Pipe |

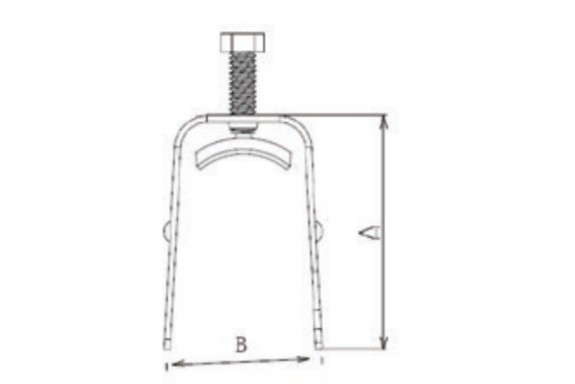

| CAT# | A | B |
| 64560B | 1.551 | 1.220 |
| 64561B | 1.870 | 1.339 |
| 64562B | 2.126 | 1.378 |
| 64563B | 2.245 | 1.378 |
| 64564B | 2.480 | 1.181 |
| 64565B | 2.776 | 1.201 |
| 64566B | 3.287 | 1.201 |
| 64567B | 3.465 | 0.925 |
| 64568B | 3.996 | 0.827 |
| 64569B | 4.567 | 0.748 |
| 64570B | 5.118 | 0.748 |
| 64571B | 5.669 | 0.748 |
