:: EMT Fittings

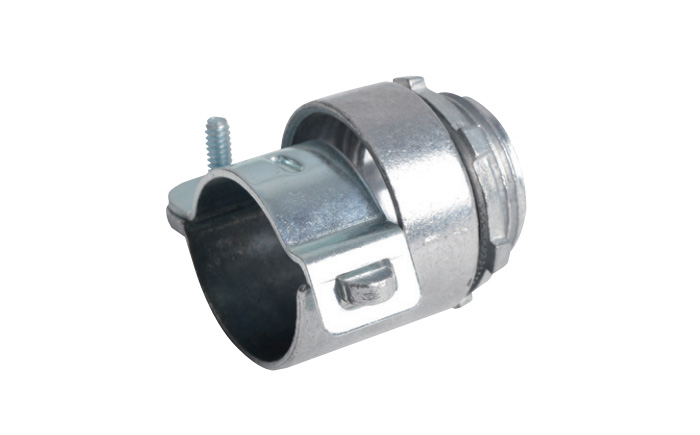

STRAP-CONNECTOR-ALUMINUM

  • Model: 82071、82073、82074、82076
    Certifications: UL
    UL FILE NO.: E315256
    INTENDED USE:STRAP CONNECTORS ARE USED TO TERMINATE AC/MC/FMC TO A STEEL OUTLET BOX OR METAL ENCLOSURE.
  • Inquiry
    • STRAP-CONNECTOR-ALUMINUM
    • STRAP-CONNECTOR-ALUMINUM

products detail


CATALOG NUMBER

TRADE SIZE

INNER CARTON

MASTER CARTON

82071

1/2''

25

250

82073

1''

10

100

82074

1-1/4''

5

50

82076

2''

10

40



CAT#

A

B

C(MIN)
C(MAX)

82071

1.559

0.535

0.4000.950

82073

1.933

0.565

0.6201.400

82074

2.315

0.654

0.5001.380

82076

2.657

0.650

0.9002.040
